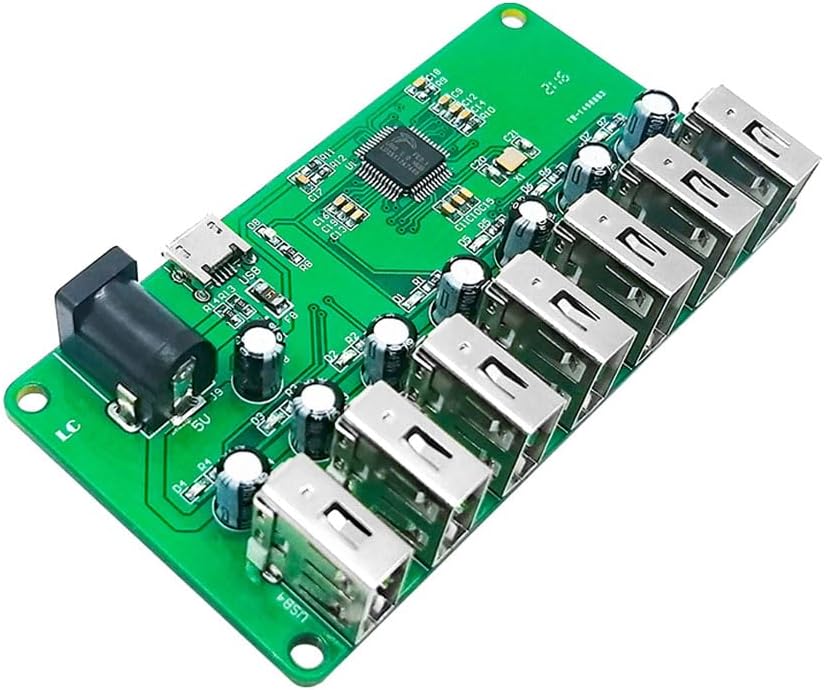

USB2.0 Hub Module, 480Mbps High Speed 7-Port Hub USB Expansion Module with Overcurrent Protection

"This module uses the MTT architecture (multiple transceiver) original chip, can be used to this module using the architecture (multiple transceiver) original chip, can expand a USB interface into 7 USB interfaces, with high performance, low power consumption, interface expansion into 7 interfaces, with high performance, low power consumption, low cost characteristics, Support USB high-speed 480Mbps, with overcurrent protection, low cost characteristics, support usb high-speed 480MBps, with overcurrent protection function, support 7 LED light indication when data transmission. Specification: Connect the computer with 500MA fuse to protect the USB interface of the computer, and the downstream USB interface with 2A fuse can drive high-current devices. With DC5V power supply interface, if you need to connect high-power devices such as mobile hard disk USB 4G card, you can use external power supply to strengthen power supply,MICRO USB/DC power supply seamless switch, automatically cut off the USB port power when connecting to DC power supply. . Board size: 43.9*84mm Instructions for use 1. Connect MICROUSB to your computer. 2. Connect the downstream port to the USB peripheral. 3. If you need to connect high-power devices, connect them to the DC power supply. Note: 1.Due to the light and screen difference, the item's color may be slightly different from the pictures. 2.Please allow 1-3cm differences due to manual measurement. Package Includes: 1x USB2.0 HUB Module"

• 1. Without any driver, it directly supports Windows, Linux and Android, etc., plug and play.
• 2. Intelligent recognition, each USB interface has a corresponding LED, which will be lit only when it is working normally.
• 3. Automatic sleep, the USB port connected to the computer has a device indicator, when no device is inserted, the LED will be on for about 2S and automatically extinguished into the energy-saving mode.
• 4. Original FE master,USB 2.0 480MBPS high speed.
• 5. Each USB interface has a large capacity capacitor filter to ensure pure power supply and improve stability.
